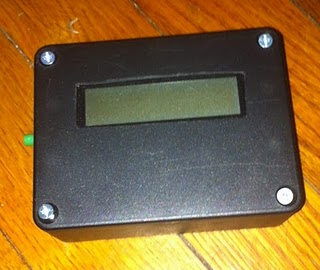

This is the Midi Sniffer. It’s a little bigger than an old fashioned pager

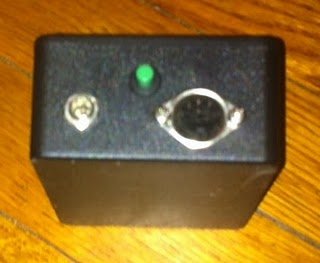

It has a Midi In, Power and Clear switch. Really didn’t need anything else.
Power up notice
Data from moving a CC Slider
Hitting the Play button
Pretty Cheap and simple with just over a dozen parts.
- 16X2 LCD Display
- Pic 16F73
- 4mhz Crystal
- 2 – 22pf Capacitors
- 220 ohm resisitor
- 3 – 1K resistors
- 5K Trimmer
- OPTO Coupler
- DIN Jack
- Power Jack
- Clear Switch
- Pactec Case
I didn’t bother to make a PCB for this since its a one off project for a specific need I had at that time. Ill draw up a schematic and I already posted the Source and Hex files on my main site. I ended up removing the LCD routines and reused the code for the Midi Controller. That one will get a real PCB since I have plenty of uses for it.
